Description

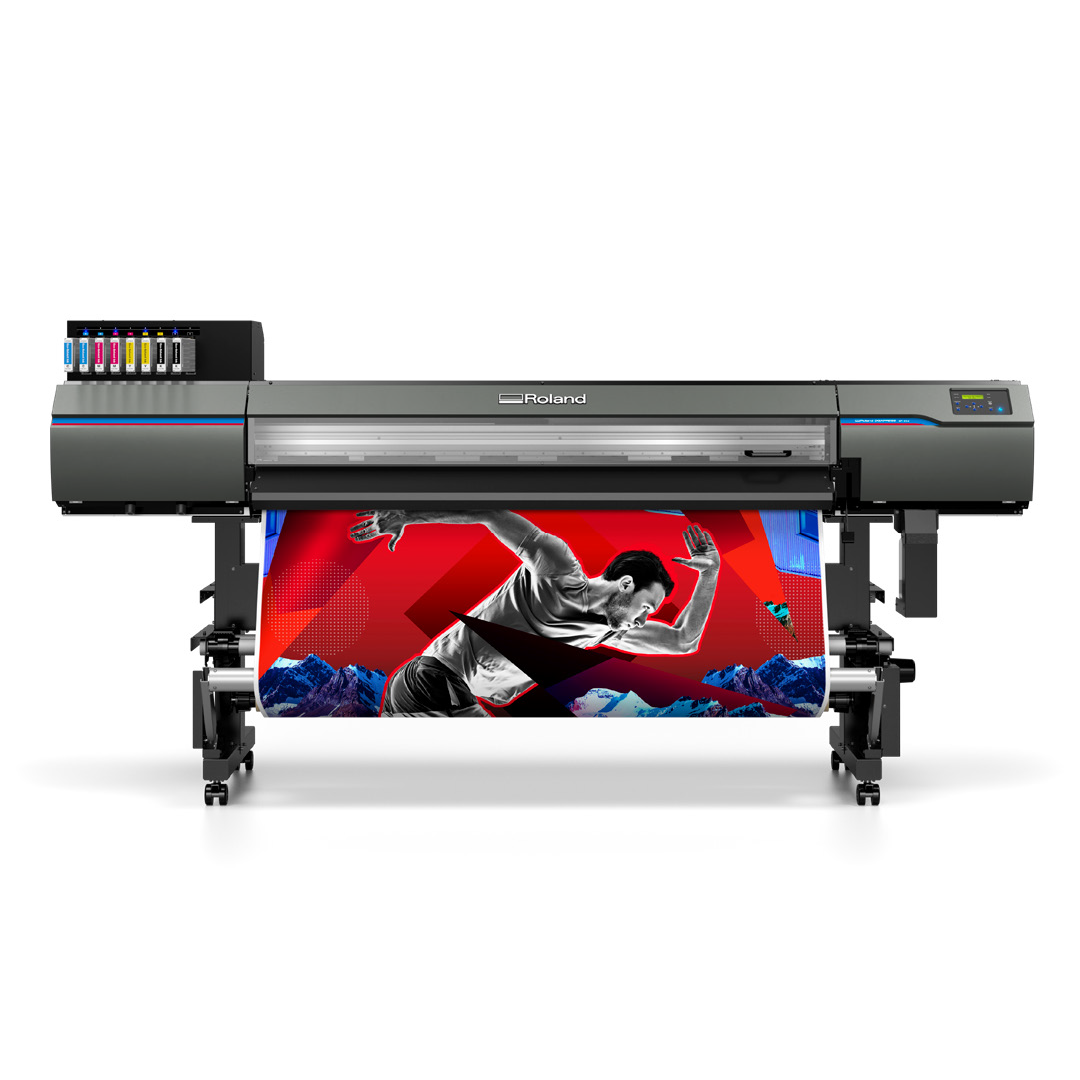

DGXPRESS ER-642
| Printing Method | Piezo ink-jet method | |
| Media | Width | 10.2 to 64 in. (259 to 1,625 mm) |
| Thickness | Max. 39.3 mil (1.0 mm) with liner | |
| Roll outer diameter | Max. 9.8 in. (250 mm) | |
| Roll weight | Max. 99 lb. (45 kg) | |
| Core diameter | 3 in. (76.2 mm) or 2 in. (50.8 mm) | |
| Printing width 1 | Max. 63.5 in. (1,615 mm) | |
| Ink | Types | Eco-Solvent Ink (D-EA) 500 ml cartridge |
| Colors | Four colors (Cyan, Magenta, Yellow, and Black) | |
| Printing Resolution (dpi) | Max. 1,200 dpi | |
| Media heating system 2 | Print heater set temperature: 86 to 113 °F (30 to 45 °C) Dryer set temperature: 86 to 131 °F (30 to 55 °C) | |
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | |
| Power-saving Function | Automatic sleep feature | |
| Power Requirements | 100-120 / 220-240 Va.c. 50 / 60 Hz 8.9 / 4.5 A | |
| Power Consumption | During operation | Approx. 1,180 W |
| Sleep mode | Approx. 50 W | |
| Acoustic Noise Level | Print with Vacuum | 66 dB (A) or less |
| During Standby | 53 dB (A) or less | |
| Dimensions (width x depth x height) | 113.7 in. x 29.5 in. x 55.8 in. (2,886 mm × 748 mm × 1,415 mm) | |
| Weight | 415 lb. (188 kg) | |
| Environment | During operation 3 | Temperature : 68 to 89.6 °F (20 to 32 °C) , humidity：35 to 80 % RH (no condensation) |
| Not operating | Temperature : 41 to 104 °F (5 to 40 °C) , humidity：20 to 80 % RH (no condensation) | |
| Included items | Dedicated stand, power cord, media take-up unit, media holders, replacement blade for separating knife, cleaning liquid bottle for maintenance, drain bottle, User’s Manual, software (VersaWorks, Roland DG Connect), etc. | |
